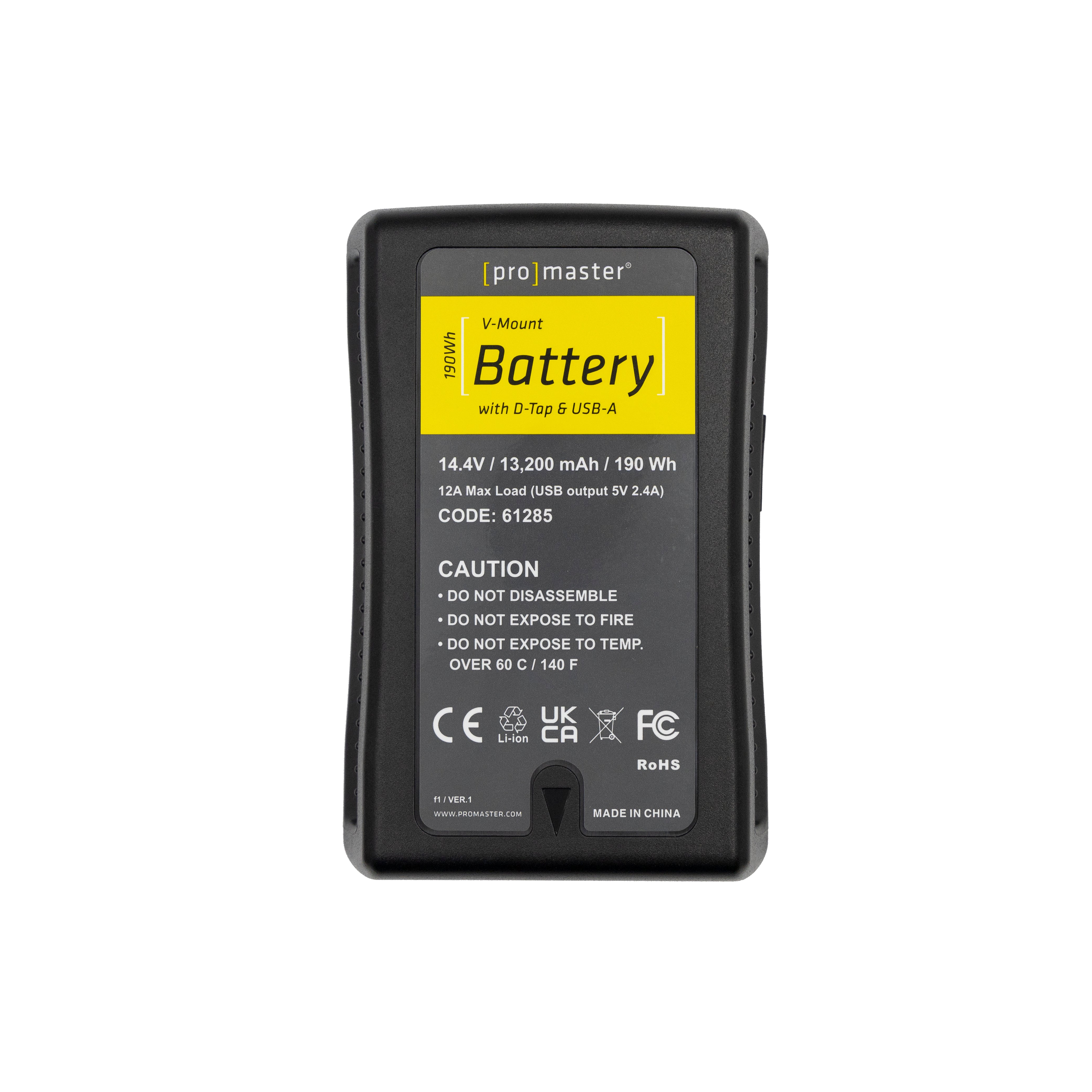

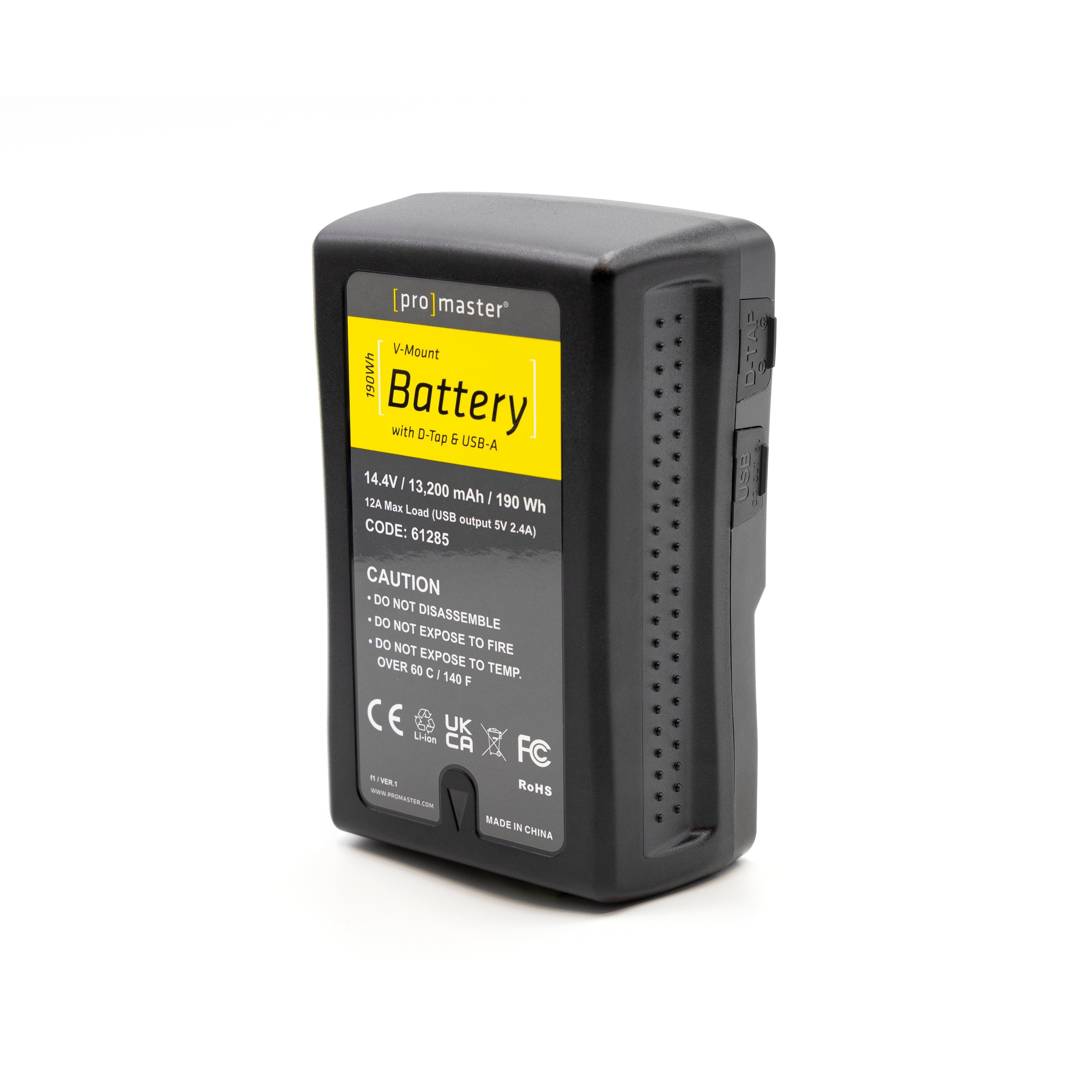

A 190 Wh lithium-ion battery & charger kit that is compatible with V-Mount & D-Tap devices.
The ProMaster 61285 V-Mount Battery Kit is a high capacity (14.4V / 13,200 mAh / 190 Wh) li-ion battery with D-Tap and USB-A ports. It supports a continuous draw up to 12A at a nominal 14.4 V. This kit includes a D-Tap charger for convenience and value.

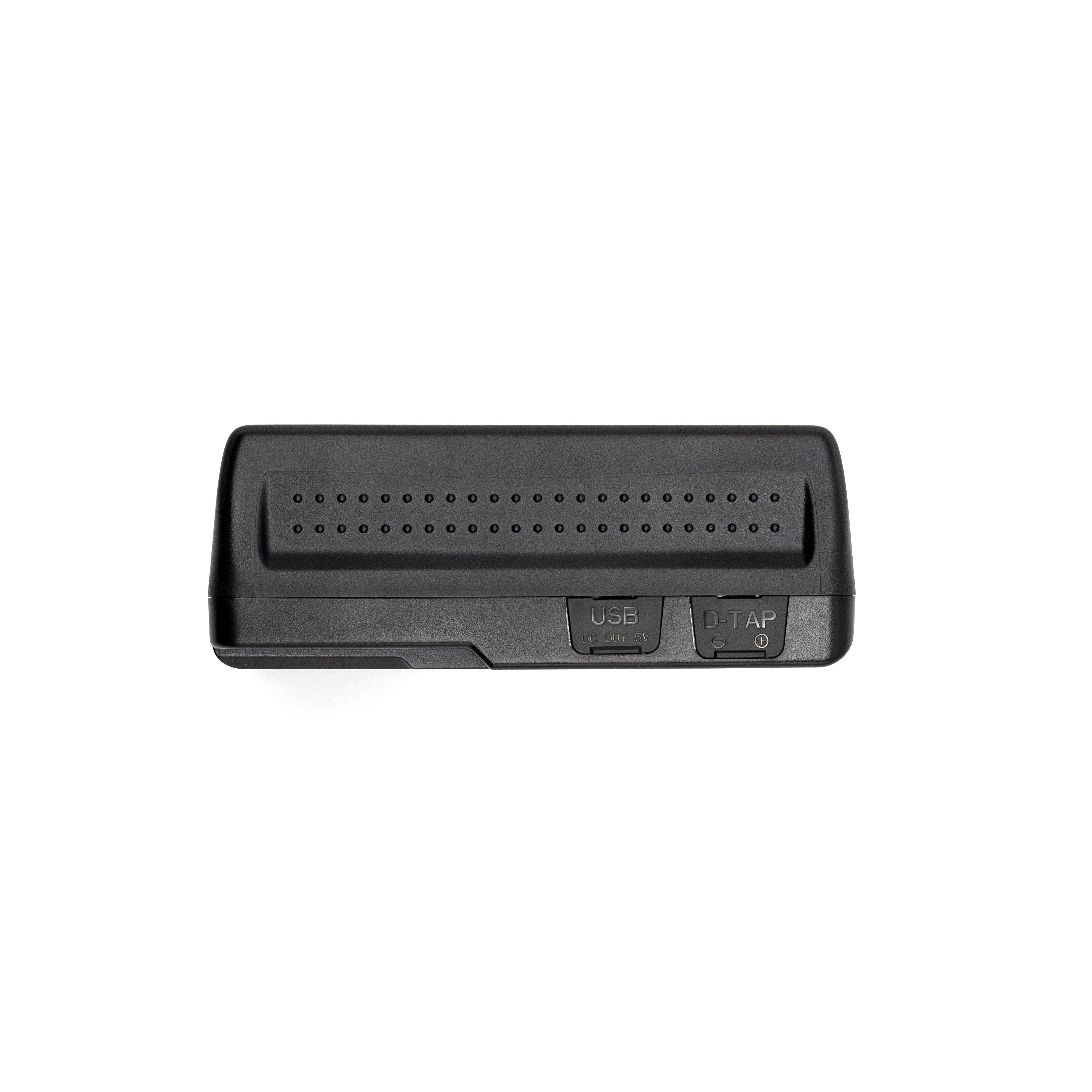

The battery sports an industry standard D-Tap port which can be used for charging the battery, as well as for powering other devices using a compatible D-Tap cable. In addition to the D-Tap port, this battery has a USB-A (5V 2.4A) output port for charging or powering compatible devices.

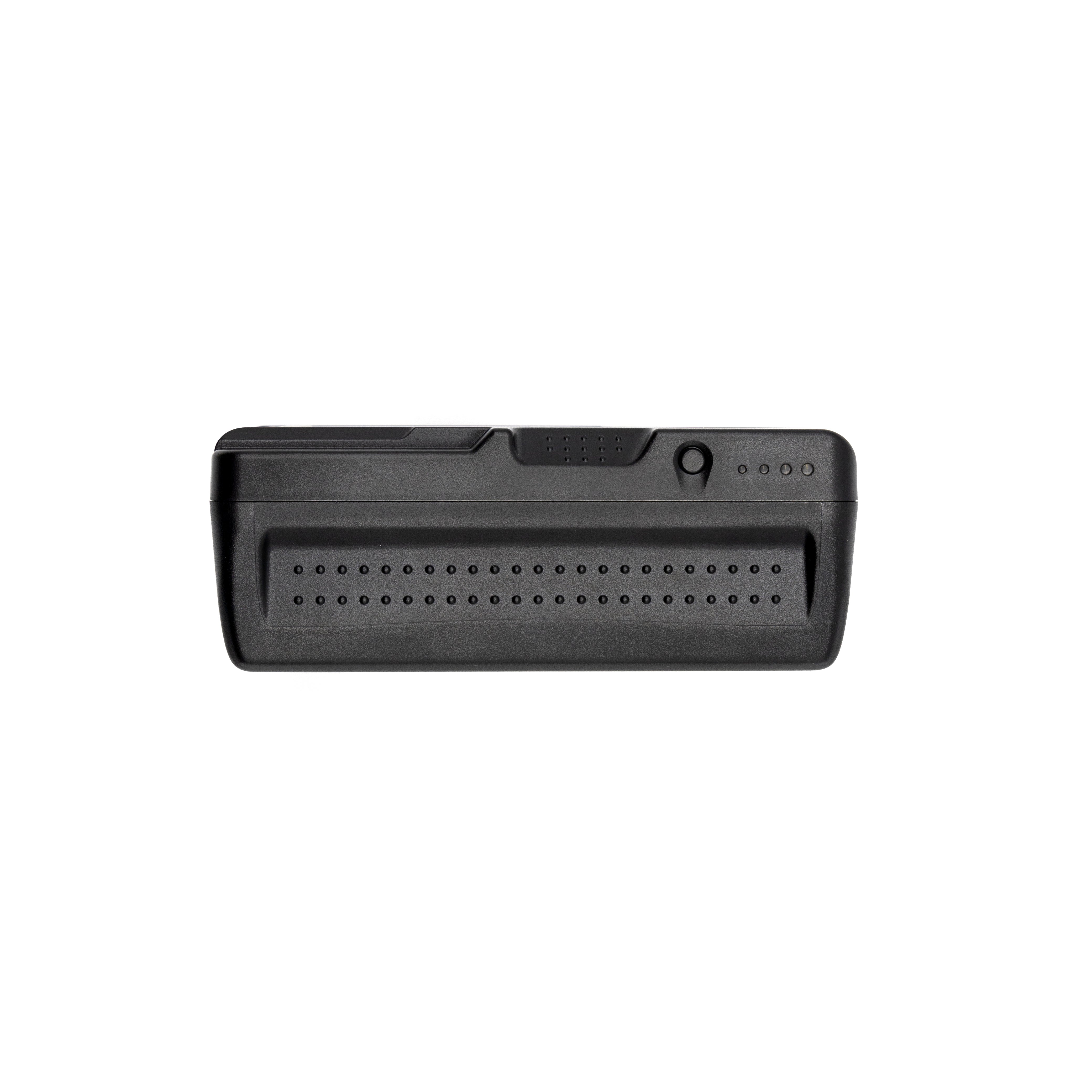

An on-board 4-LED power gauge displays the approximate, remaining battery capacity. It is easily activated with the push of a button.
Over-charge, over-discharge, over-current, and over-temperature protection circuitry is built-into this battery for safety.
Charging this battery using the included D-Tap charger from depleted to 100% takes about 8 1/2 hours.
| Battery Specifications | |
|---|---|
| Nominal Voltage | 14.4 V |
| Capacity | 13,200 mAh / 190 Wh |
| Maximum Load | 12 A continuous draw (via main contacts or D-Tap) |
| Cut-off Discharge Voltage | 10.5 V |
| Charging Voltage | 16.8 V |
| Charging Current | 2.64 A standard charging / 4.0 A quick charging |
| Maximum Charging Current | 6 A |
| USB-A Port Output | 5 V / 2.4 A |
| USB Cut-off Discharge Current Protection | 2.5 - 3.2 A |
| D-Tap Maximum Discharge Current | 14.9 A (16.8 V) - 23.8 A (10.5 V) |
| D-Tap Charging Voltage | 16.8 V |
| D-Tap Maximum Charging Current | 6 A |
| Dimensions | 5 7/8" x 3 3/4" x 2 1/4" | 150 mm x 95 mm x 57 mm |
| Weight | 1,063 g / 2 lbs 5 1/2 oz |

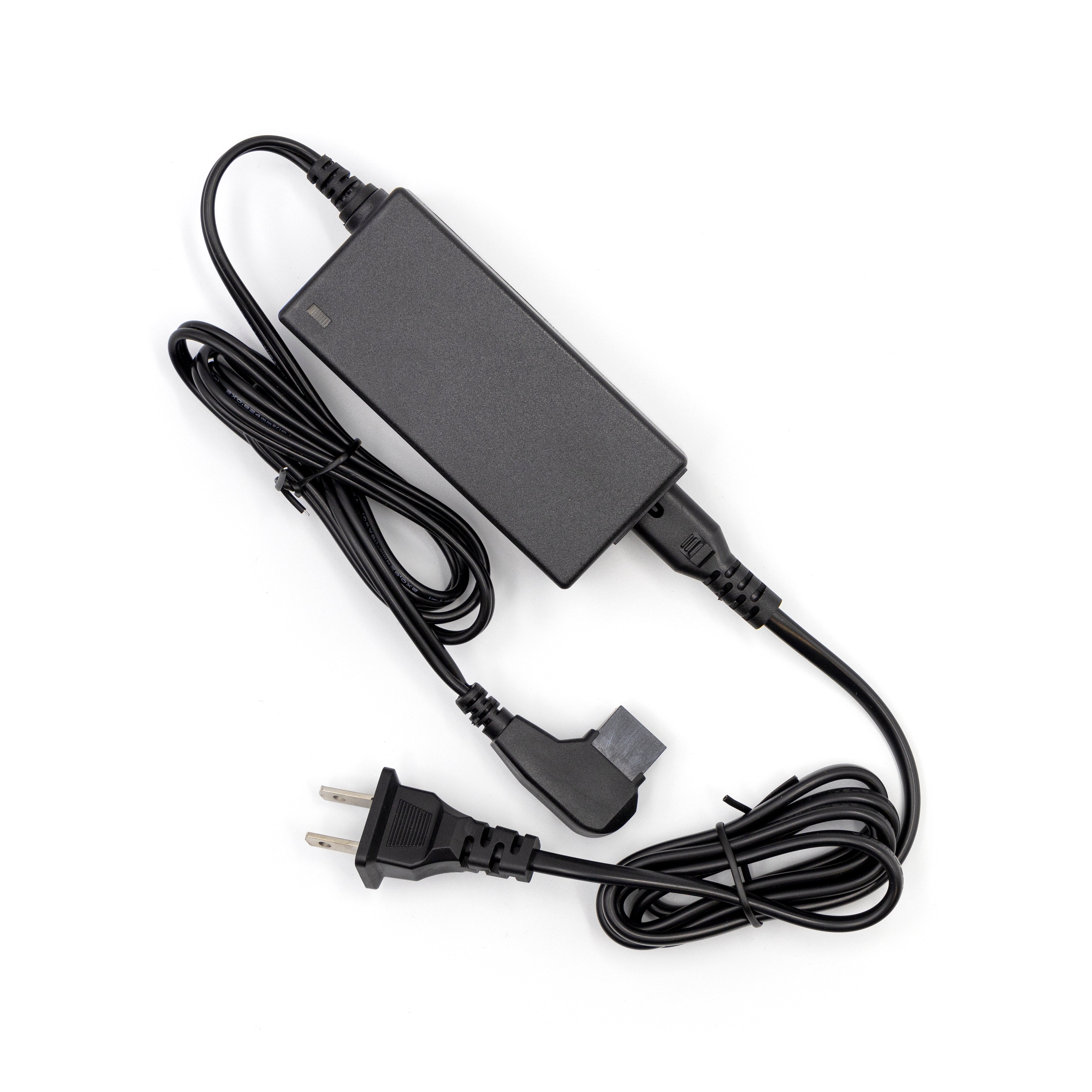

| Charger Specifications | |
| Input | 100 - 240 V AC 50/60 Hz |
| Output charging voltage | 16.8 V DC |
| Output charging current | 2.0 A |
